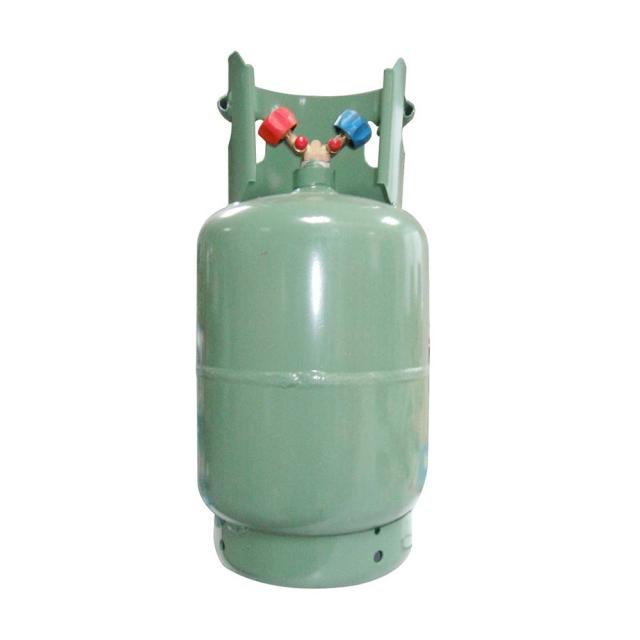

Reusable refrigerant cylinder

Product Features: This cylinder is a welded steel cylinder used to refill refrigerant. It is widely used in refrigeration and air conditioning equipment. The products are manufactured, tested and accepted in strict accordance with EN13322-1:2003 "Mobile Cylinders - Refillable Steel Welded Steel Cylinders - Design and Structure" and the "Quality Supervision Regulations for Cylinders" of the State Bureau of Quality and Technical Supervision. The production and manufacture of products are subject to the supervision and management of the quality and technical supervision department.

产品描述

Product Features:

1. This cylinder is a welded steel cylinder used to refill refrigerant. It is widely used in refrigeration and air conditioning equipment.

2. The products are manufactured, tested and accepted in strict accordance with EN13322-1:2003 "Mobile Cylinders - Refillable Steel Welded Steel Cylinders - Design and Structure" and the "Quality Supervision Regulations for Cylinders" of the State Bureau of Quality and Technical Supervision. The production and manufacture of products are subject to the supervision and management of the quality and technical supervision department.

3. Since the medium contained in the product has a high pressure at normal temperature and is sensitive to environmental changes, the use temperature is strictly limited to -20 to 55 °C.

4. The refrigerant in the cylinder coexists in the gas and liquid phases at normal temperature. When the liquid phase refrigerant is required, the cylinder is inverted, the external pipeline is connected, and the valve is discharged. After the use, the valve is closed.

5. Strictly control the use and storage environment temperature (-40~60 °C), do not exceed, prohibit sun exposure and close to heat source.

6. The filling of cylinders shall be carried out in strict accordance with the provisions of GB14193-1993 "Liquid gas cylinder filling regulations", and the filling weight shall comply with the allowable range indicated in this manual.

Parameter description:

Cylinder size and volume	13.6L	20L	30L	50L	60L	100L
Nominal test pressure	3.1Mpa,	3.0Mpa	2.1Mpa	2.0Mpa	4.0Mpa	3.0Mpa
Hydrostatic test pressure	4.7Mpa	4.5Mpa	3.2Mpa	3.0Mpa	6.0Mpa	4.5Mpa
Air tightness test pressure	3.1Mpa	3.0Mpa	2.1Mpa	2.0Mpa	4.0Mpa	3.0Mpa
Cylinder wall thickness	2.24-2.72mm	2.24-2.72mm	2.5mm	2.5mm	4.5mm	3.6mm
Cylinder inner diameter	238mm	238mm	300mm	350mm	350mm	350mm
Cylinder height	350mm	460mm	690mm	756mm	889mm	1338mm
Manufacturing Standards	GB5100/EN13322-1：2003		GB6653-94 and in accordance with the provisions of GB5100		GB6653，GB5100
Operating temperature	-40℃～60℃
Seat thread	PZ27．8/25E
Useful life	10 years
Cylinder weight	8.7KG	8.7KG	17KG	23Kg	55Kg	50Kg
Filling medium	R134A/R22/R404A/R410A/R407A/R407C/R408A/R409A/R413A/R507/R427A/R428A, etc. Note: For users of R410A refrigerant, please choose: 14.3L and 60L cylinders
