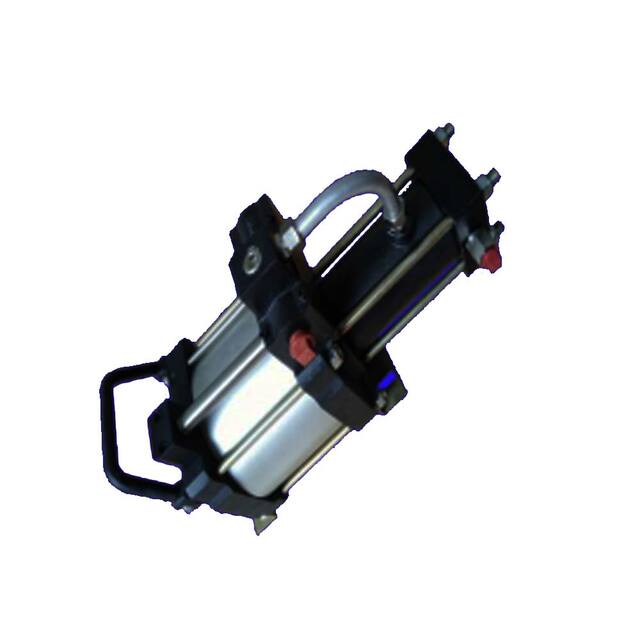

Gas-liquid booster pump

Technical characteristics of the booster pump: The gas booster pump is one of the pneumatic booster pumps. It uses compressed air as the power source and does not need to consume electricity. The pressurized medium is air or high purity gas. Such as hydrogen, nitrogen, helium, oxygen, and the like. Because it is driven by compressed air, it can be used in flammable and explosive occasions, and the output pressure is high, it can reach 80MPa, which is suitable for high pressure and small flow, such as air tightness test, high pressure reactor charge, automobile Brake system testing, high pressure gas injection molding and other occasions. Saixi gas booster pump can be divided into: single-stage single-acting gas booster pump (SX-RV series), single-stage double-acting gas booster pump (sx-RP series), dual-stage gas booster pump (SX-RH) series)

产品描述

Technical characteristics of the booster pump:

The gas booster pump is one of the pneumatic booster pumps. The compressed air is used as the power source, and no power is consumed. The pressurized medium is air or high-purity gas, such as hydrogen, nitrogen, helium, oxygen, and the like. Because it is driven by compressed air, it can be used in flammable and explosive occasions, and the output pressure is high, it can reach 80MPa, which is suitable for high pressure and small flow, such as air tightness test, high pressure reactor charge, automobile Brake system testing, high pressure gas injection molding and other occasions. Saixi gas booster pump can be divided into: single-stage single-acting gas booster pump (SX-RV series), single-stage double-acting gas booster pump (sx-RP series), dual-stage gas booster pump (SX-RH) Series)


RH/RV/RP series gas booster pump (single stage single acting):

The gas booster pump uses a single air-controlled balance gas reversing valve to realize the reciprocating motion of the pump. All of them are made of aluminum alloy and stainless steel. All the seals are imported high-quality products. The maximum design drive pressure is 10 bar. In order to ensure the life of the pump, It is recommended to drive the air pressure ≤ 8bar.
The pump has a drive piston diameter of 160mm and is a single-acting pump. All single-acting pump heads are equipped with an exhaust gas cold gas compression pump to compress the gaseous medium.
Nitrogen (N2), Helium (He), Hospital Breathing Gas (N2+O2), Nitrous Oxide (N2O), Carbon Dioxide (CO2), Helium (Ne), Argon (Ar), Sulfur Hexafluoride Gas (SF6) ), carbon monoxide (CO), hydrogen (H2), ethylene (C2H4), heavy hydrogen (D2), refrigerant, fire extinguishing agent, alkane gas, oxygen (O2) & mdash; & mdash; the highest safe working pressure is 34.5MPa.
