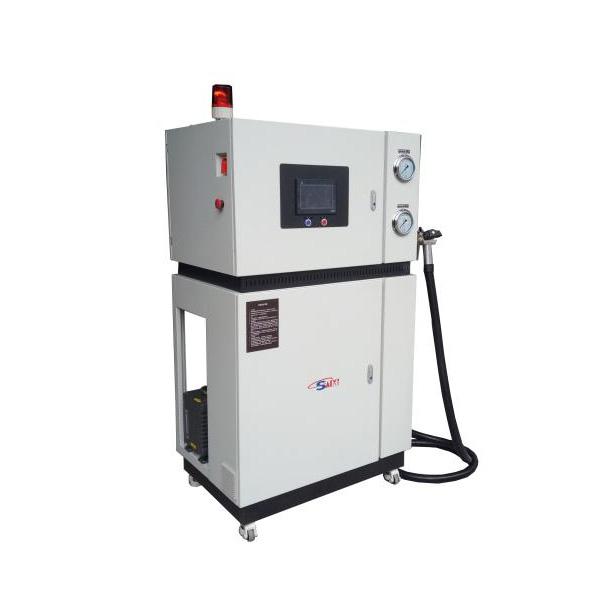

D0 series high-speed refrigerant filling machine, suitable for air conditioning units, modular machines, heat pumps, central air conditioners, bus air conditioners, etc., filling range: 50g-99999g

Equipment: CSX-058S-D0 Series High-speed Refrigerant Filling Vacuum filling machine with automatic vacuum, leak detection and quantitative filling,Refillable media: HC134, H407 series, R22, R404A, R406A, R410, etc., suitable for heat pump, central air conditioning, chiller, modular unit, air source equipment, household High-speed refrigerant vacuum filling of various medium and large-scale refrigerant equipment manufacturers such as air conditioners.

产品描述

Device Description:

CSX-058S-D0 series high-speed refrigerant filling vacuum filling machine with medium vacuum, leak detection and quantitative filling, fully refillable medium: R134a, R407c, R22, R404A, R406A, R410, etc. HCFC, HFC series Refrigerant, this machine is suitable for high-speed refrigerant vacuum filling of various medium and large-scale refrigerant equipment manufacturers such as heat pump, central air conditioner, chiller, modular unit, air source equipment and household air conditioner.


Technical parameters:

Optional device models

SX-D01

SX-DH03

SX-DH05

SX-DH08




Suitable for refrigerant
Applicable
Refrigerants

R134a, R22, R406a,
R1233zd, R404a, etc.

R134a, R22, R406a,
R407c, R404a, R410A

R134a, R22, R406a,
R407c, R404a, R410A

R134a, R22, R406a,
R407c, R404a, R410A




Filling range
Filling quantity
Range(g)

50-4999

50-9999

50-49999

50-99999 (expandable)




Filling speed
Chargingspeed
(g/s)

80-120

80-120

100-150

120-200




Filling accuracy
Chargingprecision

1000g≤±0.5%
1000goutside≤±0.3%




Metering method
Measurementmethods

CSX/FR series German original flowmeter (optional RHEONIK mass flowmeter)
CSX/FR series Germany original flowmeter,Rheonikmassflowmeteroptional




Traffic resolution
Resolution

0.1g

0.1g

0.1g

0.1g




Local vacuum rate
Vacuumspeed

8L/S

8L/S

8L/S

8L/S




Local vacuum
Themachinevacuum

≤3Pa-8Pa

≤3Pa-8Pa

≤3Pa-8Pa

≤3Pa-8Pa




Detecting vacuum
Detectionvacuum

3Pa-500Pa

3Pa-500Pa

3Pa-500Pa

3Pa-500Pa




Preset channel
Defaultchannel
Number

100


Refrigerant working pressure
Refrigerantpressure

2.5-3.0MPa

2.5-3.0MPa

2.5-3.5MPa

2.5-3.5MPa

Compressed air supply pressure
Compressedairpressure

0.6-0.7MPa

0.6-0.7MPa

0.6-0.7MPa

0.6-0.7MPa




Booster pump station
Boosterpumpstation

Standard built-in (optional with external booster station)
The standard built-in external booster station (can choose to go)




Touch screen, controller, module
PLC, HMI, Admodule

OMRON/Siemens
Omron/Siemens7"

OMRON/Siemens
Omron/Siemens7"

OMRON/Siemens
Omron/Siemens7"

OMRON/Siemens
Omron/Siemens7"




Power supply and rated power
Voltage & Power

AC380V50HZor AC220
50HZ/1.5KW

AC380V50HZor AC220
50HZ/1.5KW

AC380V50HZor AC220
50HZ/1.5KW

AC380V50HZor AC220
50HZ/1.5KW




Filling gun and interface
Injectorandquickconnector

3/8"(1/4")

3/8"(1/4")

3/8"(1/4")

3/8"(1/4")




Barcode reading function
Barcodereadingfunction

Optional Optional




Communication interface
Communicationinterface

RS485/RS232/Ethernet




Applicable product category (reference) Apply product category

Commercial air conditioners, central air conditioners, industrial air conditioners, chillers, modular units, and other high-speed production lines for household air conditioners and heat pumps, etc.
Commercialairconditioningandcentralairconditioning,indicatrialairconditioning,waterchillers,
High-speedlinehomeair-conditionersandheatpumpetc




Volume/weight
Volume/Weight

L950xW650xH1700mm/295KG

L950xW650xH1700mm
/295KG




Machine warranty time
Machine warranty time

1 year (special requirements can be agreed separately)
1 year(Special requirements can be agreed separately)
