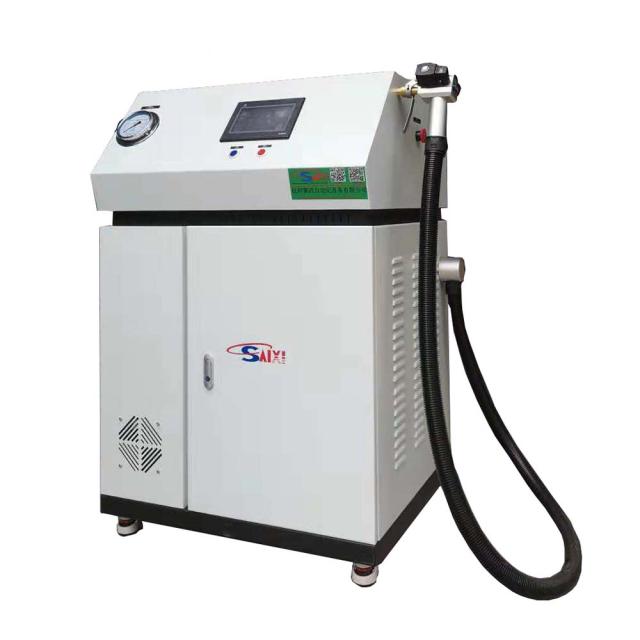

Economical DR series refrigerant filling machine, suitable for drinking fountains, ice machines, cake cabinets, medicine cool cabinets, wine cabinets, small refrigeration units
Equipment: DR series is suitable for automatic vacuuming, leak detection and quantitative filling of refrigerants in small refrigeration equipment. Use occasions: The production line of small refrigeration unit manufacturers such as freezer, cake cabinet, kitchen cabinet, water dispenser, refrigerator, coffee machine, ice machine heat pipe, computer room air conditioner, etc. Whether you need an evacuation or degassing system, our range of vacuum filling, dosing, vacuum systems and non-standard custom equipment can provide the best performance solution for your wide range of applications.
产品描述
Equipment Description:
The DR series is suitable for equipment for automatic vacuuming, leak detection and quantitative filling of refrigerants in small refrigeration equipment. Use occasions: production lines for small refrigeration units such as refrigerators, cake cabinets, kitchen cabinets, water dispensers, refrigerators, coffee machines, ice machine heat pipes, and computer room air conditioners. Whether you need an evacuation or degassing system, our range of vacuum filling, dosing, vacuum systems and non-standard custom equipment can provide the best performance solution for your wide range of applications. .
Technical parameters:
Optional device models | SX-DR100 | SX-DR106 | SX-DR108 | |
Suitable for refrigerant | R134a, R22, R406a, | R134a, R22, R406a, | R134a, R22, R406a, | |
Filling range | 3-399 | 5-699 | 10-2999 | |
Filling speed | 30-60 | 40-70 | 60-80 | |
Filling accuracy | Within 100g ≤± 0.5g100g or more &&;;±0.5% | |||
Metering method | CSX/FR series German original flowmeter (optional RHEONIK mass flowmeter) | |||
Traffic resolution | 0.1g | 0.1g | 0.1g | |
Local vacuum rate | 4L/S | 4L/S | 4L/S | |
Local vacuum | ≤3Pa-8Pa | ≤3Pa-8Pa | ≤3Pa-8Pa | |
Detecting vacuum | 3Pa-500Pa | 3Pa-500Pa | 3Pa-500Pa | |
Preset channel | 100 | 100 | 100 | |
Refrigerant working pressure | 1.6-1.8MPa | 1.6-1.8MPa | 2.0-3.0MPa | |
Compressed air supply pressure | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7MPa | |
Booster pump station | Standard built-in (optional with external booster station) | |||
Touch screen, controller, module | OMRON/Siemens | OMRON/Siemens | OMRON/Siemens | |
Power supply and rated power | AC380V50HZor AC220 | AC380V50HZor AC220 | AC380V50HZor AC220 | |
Filling gun and interface | 1/4"(3/8") | 1/4"(3/8") | 1/4"(3/8") | |
Barcode reading function | Optional Optional | |||
Communication interface | RS485/RS232/Ethernet | |||
Applicable product category (reference) Apply product category | Water dispenser, beer machine, coffee machine, display cabinet, refrigerator, wine cooler, | Freezer, air conditioner, refrigerated freezer, air cooler, chiller, heat pump | ||
Volume/weight | L650xW550xH1150mm/165KG | L650xW550xH1150mm | ||
Machine warranty time | 1 year (special requirements can be agreed separately) | |||
