T0 series refrigerant filling machine is suitable for household air conditioners, heat pumps, dehumidifiers, ice machines, refrigerators, vending machines, etc., and the range of filling: 10g-9999g

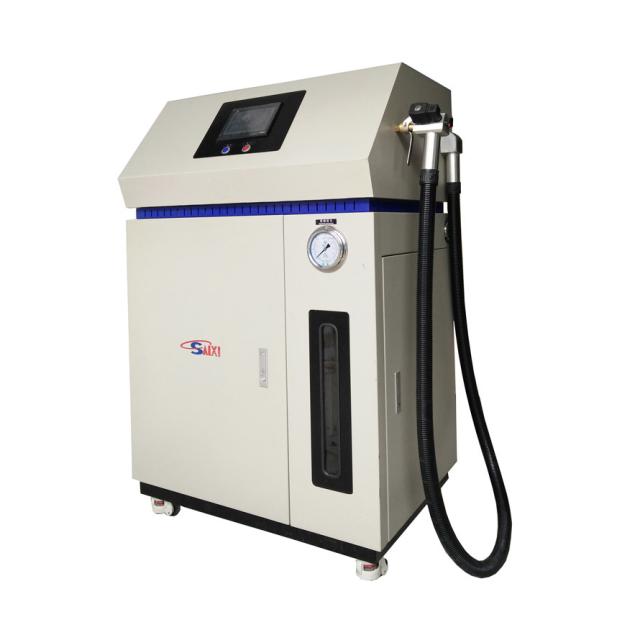

Equipment: CSX-058S-T0 series refrigerant filling machine has a vacuum filling machine with centralized vacuuming, leak detection and quantitative filling.Refillable media: R134a, R407c, R22, R404A, R406A, R410A and other HCFC, HFC series refrigerants, this machine is suitable for freezer, ice machine, water dispenser, heat pipe, refrigerator, household air conditioner, The refrigerant of various types of refrigeration equipment such as the sun flower heat sink is vacuum-filled. Unique and exquisite automatic filling gun, intelligent balance cylinder as a first-stage charging regulator system, France imported energy storage device as a secondary backup, dual-regulated operating system can be switched freely, which can make production more smooth, T0 series The refrigerant filling machine is the only filling device that has been developed and successfully used in the first time in China.

产品描述

Device Description:

CSX-058S-T0 series refrigerant filling machine has a vacuum filling machine with centralized vacuuming, leak detection and quantitative filling,

Refillable media:

HCFC and HFC series refrigerants such as R134a, R407c, R22, R404A, R406A, R410A, etc. This machine is suitable for refrigeration of various refrigeration equipment such as refrigerators, ice machines, water dispensers, heat pipes, refrigerators, household air conditioners, and solar heat sinks. The agent is vacuum filled. Unique and exquisite automatic filling gun, intelligent balance cylinder as a first-stage charging regulator system, France imported energy storage device as a secondary backup, dual-regulated operating system can be switched freely, which can make production more smooth, T0 series The refrigerant filling machine is the only filling device that has been developed and successfully used in the first time in China, and the stability and accuracy of the use are more guaranteed.

Technical parameters:

Optional device models	SX-T01	SX-T03	SX-T05		SX-T07
Suitable for refrigerant Applicable Refrigerants	R134a, R22, R406a, R1233zd, R404a, etc.	R134a, R22, R406a, R407c, R404a, R410A	R134a, R22, R406a, R407c, R404a, R410A		R134a, R22, R406a, R407c, R404a, R410A
Filling range Filling quantity Range(g)	5-1000	10-4999	10-9999		10-9999
Filling speed Chargingspeed (g/s)	30-60	50-80	80-160		80-200
Filling accuracy Chargingprecision	100g≤±0.5g 100goutside≤±0.5%		1000g≤±1% 1000goutside≤±0.5%
Metering method Measurementmethods	CSX/FR series German original flowmeter (optional RHEONIK mass flowmeter) CSX/FR series Germany original flowmeter,Rheonikmassflowmeteroptional
Traffic resolution Resolution	0.1g	0.1g	0.1g		0.1g
Local vacuum rate Vacuumspeed	4L/S	4L/S	8L/S		8L/S
Local vacuum Themachinevacuum	≤3Pa-8Pa	≤3Pa-8Pa	≤3Pa-8Pa		≤3Pa-8Pa
Detecting vacuum Detectionvacuum	3Pa-500Pa	3Pa-500Pa	3Pa-500Pa		3Pa-500Pa
Preset channel Defaultchannel Number	100	100	100		100
Refrigerant working pressure Refrigerantpressure	1.8-2.5MPa	1.8-2.5MPa	2.5-3.0MPa		2.5-3.0MPa
Compressed air supply pressure Compressedairpressure	0.5-0.7MPa	0.5-0.7MPa	0.5-0.7MPa		0.5-0.7MPa
Booster pump station Boosterpumpstation	Standard built-in (optional with external booster station) The standard built-in external booster station (can choose to go)
Touch screen, controller, module PLC, HMI, Admodule	OMRON/Siemens Omron/Siemens7"	OMRON/Siemens Omron/Siemens7"	OMRON/Siemens Omron/Siemens7"		OMRON/Siemens Omron/Siemens7"
Power supply and rated power Voltage & Power	AC380V50HZor AC220 50HZ/0.75KW	AC380V50HZor AC220 50HZ/0.75KW	AC380V50HZor AC220 50HZ/1.5KW		AC380V50HZor AC220 50HZ/1.5KW
Filling gun and interface Injectorandquickconnector	1/4"(3/8")	1/4"(3/8")	1/4"(3/8")		1/4"(3/8")
Barcode reading function Barcodereadingfunction	Optional Optional
Communication interface Communicationinterface	RS485/RS232/Ethernet
Applicable product category (reference) Apply product category	Water dispenser, beer machine, coffee machine, display cabinet, refrigerator, wine cooler, Car refrigerator other small refrigerated freezer Water machine, beer machine, coffee machine, Display cabinet, refrigerator, wine cabinet, Car refrigerator Other small refrigeration cooler			Freezer, air conditioner, refrigerated freezer, air cooler, chiller, heat pump Freezers, airconditioning, refrigerating reef, cooling fan, chillers, heatpump
Volume/weight Volume/Weight	L950xW650xH1350mm/255KG			L950xW650xH1350mm /275KG
Machine warranty time Machine warranty time	1 year (special requirements can be agreed separately) 1 year(Special requirements can be agreed separately)
