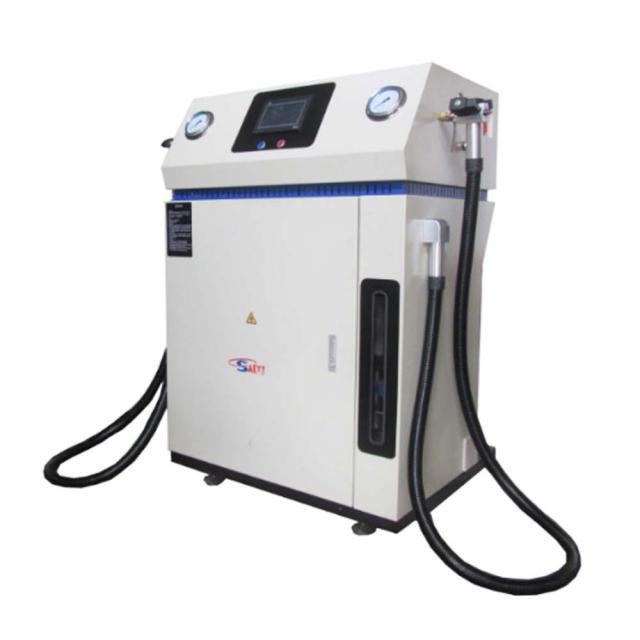

DT0 series double gun double system refrigerant filling machine can be used simultaneously with double guns. It can also be used selectively. It can be used for two or more refrigerant mixing line production operations. Filling range: 10g-9999g

Equipment: CSX-058S-ST0 series refrigerant filling machine has a vacuum filling machine with centralized evacuation, leak detection and quantitative filling. Refillable medium: : R134a, R407c, R22, R404A, R406A, R410A and other HCFC, HFC series refrigerants, this machine is suitable for refrigerators, ice machines, water dispensers, heat pipes, refrigerators, household air conditioners, solar heat sinks, etc. The refrigerating agent of the refrigeration equipment of the refrigeration equipment is vacuum-filled. Unique and exquisite automatic filling gun, intelligent balance cylinder as a first-stage charging regulator system, France imported energy storage device as a secondary backup, dual-regulation operating system can be switched freely, which can make production more smooth, ST0 series The refrigerant filling machine is the only filling device that has been developed and successfully used in the first time in China, and the stability and accuracy of the use are better guaranteed.

产品描述

Device Description:

CSX-058S-ST0 series refrigerant filling machine has a vacuum filling machine with centralized evacuation, leak detection and quantitative filling. The refillable medium: R134a, R407c, R22, R404A, R406A, R410A and other HCFC, HFC series Refrigerant, this machine is suitable for freezer, ice machine, water dispenser, heat pipe, refrigerator, household air conditioner, sun flower heat sink, etc., all kinds of refrigeration equipment home appliances refrigerant vacuum filling. Unique and exquisite automatic filling gun, intelligent balance cylinder as a first-stage charging regulator system, France imported energy storage device as a secondary backup, dual-regulation operating system can be switched freely, which can make production more smooth, ST0 series The refrigerant filling machine is the only filling device that has been developed and successfully used in the first time in China, and the stability and accuracy of the use are better guaranteed.


Technical parameters:


Optional device models
       DT02
       DT06
          DT08
   Applicable refrigerant
Applicable
Refrigerants
R134a, R22, R406a,
R1233zd, R404a, etc.
R134a, R22, R406a,
R407c, R404a, R410A
R134a, R22, R406a,
R407c, R404a, R410A
   Fill range
Filling quantity range(g)
10-1500
20-4999
20-9999 (can work at the same time)
    Adding speed
Charging speed
(g/s)
30-60
60-80
60-120
Filling accuracy
Charging precision
100g≤±0.5g100g outside≤±0.5%
Metering method
Measurement methods
CSX/FR series German original flowmeter (optional RHEONIK mass flowmeter)
CSX/FR series Germany original flowmeter, Rheonik mass flowmeter optional
Traffic resolution
Resolution
0.1g
0.1g
0.1g
 Local vacuum rate
Vacuum speed
    4L/S
       8L/S
       8L/S
Local vacuum
The machine vacuum
      ≤3Pa-8Pa
       ≤3Pa-8Pa
       ≤3Pa-8Pa
Detecting vacuum
Detection vacuum
     3Pa-500Pa
  3Pa-500Pa
     3Pa-500Pa
 Preset channel
Default channel
 number
100
100
100
Refrigerant working pressure
Refrigerant pressure
1.8-2.0MPa
1.8-2.0MPa
    2.0-2.5MPa
Compressed air supply pressure
Compressed air pressure
  0.6-0.7MPa
 0.6-0.7MPa
 0.6-0.7MPa
Booster pump station
Booster pump station
                                  Standard built-in (optional with external booster station)
The standard built-in external booster station (can choose to go)
Touch screen, controller, module
PLC, HMI, Admodule
OMRON/Siemens
Omron/Siemens7"
OMRON/Siemens
Omron/Siemens7"
 OMRON/Siemens
Omron/Siemens10"
Power supply and rated power
Voltage & Power
AC380V 50HZ or AC220
50HZ /1.5KW
AC380V 50HZ or AC220
50HZ /1.5KW
AC380V 50HZ or AC220
50HZ /1.5KW
Filling gun and interface
Injector and quick connector
1/4"(3/8")
  1/4"(3/8")
1/4"(3/8")
Barcode reading function
Barcode reading function
& Nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;; & nbsp; & nbsp; & nbsp; & nbsp attachments & nbsp; optional
Communication interface
Communication interface
                                         RS485/RS232/Ethernet
Applicable product category (reference) Apply product category
Water dispenser, beer machine, coffee machine, display cabinet, refrigerator, wine cooler, car refrigerator, other small refrigerated freezer, freezer, air conditioner,
Refrigerated freezer, chiller, chiller, heat pump
Drinking machines, beer machines, coffee machines, display cabinets, refrigerators, wine cabinets, car refrigerators,
Volume/weight
Volume/Weight
   L950xW650xH1400mm/295KG
L950xW650xH1400mm/295KG
Machine warranty time
Machine warranty time
             1 year (special requirements may be agreed upon)
1 year(Special requirements can be agreed separately)
